Windshield Wiper Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove wiper pivot caps (1) and wiper arm nuts (2), and remove windshield wiper arms with wiper blades (3).

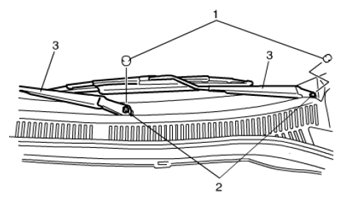

Fig 1: Removing Wiper Pivot Caps And Wiper Arm Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Remove cowl top garnish referring to COWL TOP AND FRONT LOWER CROSSMEMBER COMPONENTS .
Disconnect coupler from windshield wiper motor.
Remove bolts (1), and remove windshield wiper assembly (2).

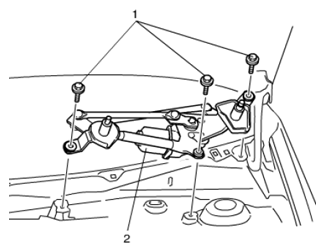

Fig 2: Removing Windshield Wiper Assembly
Courtesy of SUZUKI OF AMERICA CORP.
