Rear Wiper and Washer Switch Inspection

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Reference: WINDSHIELD WIPER AND WASHER SWITCH REMOVAL AND INSTALLATION

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

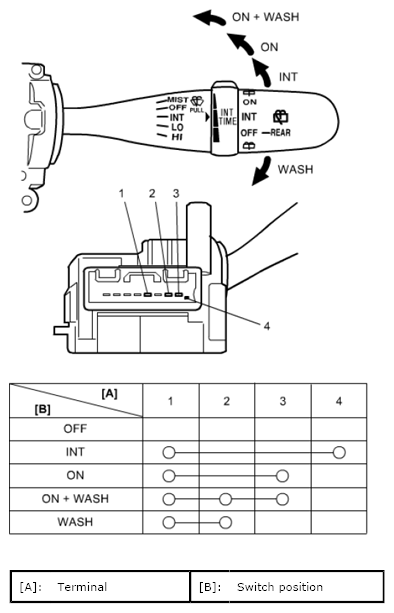

Fig 1: Inspecting Rear Wiper And Washer Switch

Courtesy of SUZUKI OF AMERICA CORP.
