Rear Wiper Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove arm cover (1), rear wiper arm nut (2), rear wiper arm with blade assembly (3), rear wiper pivot cap (4), rear wiper nut (5) and rear wiper seal (6).

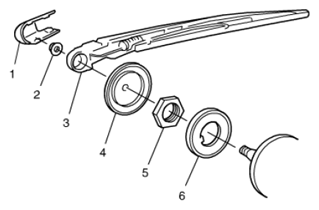

Fig 1: Removing Arm Cover, Rear Wiper Arm Nut, Rear Wiper Arm With Blade Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove rear end door trim referring to REAR END DOOR LOCK ASSEMBLY REMOVAL AND INSTALLATION (HATCHBACK) .
Disconnect coupler from rear wiper motor.
Remove rear wiper motor.
