Rear Wiper Removal and Installation: Installation

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Install rear wiper motor (1) and tighten rear wiper motor mounting bolts to specified torque.
Tightening torque

Rear wiper motor mounting bolt (a): 8 N.m (0.8 kg-m, 6.0 lbf-ft)

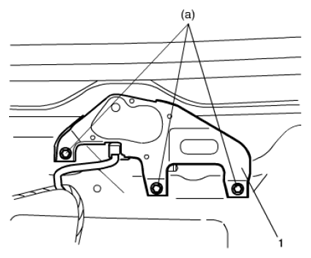

Fig 1: Identifying Rear Wiper Motor Mounting Bolt Tightening Order
Courtesy of SUZUKI OF AMERICA CORP.
Connect coupler to rear wiper motor
Install rear end door trim referring to REAR END DOOR LOCK ASSEMBLY REMOVAL AND INSTALLATION (HATCHBACK) .
Install rear wiper seal (1), and tighten rear wiper nut to specified torque.
Tightening torque

Rear wiper nut (a): 5 N.m (0.5 kg-m, 4.0 lbf-ft)
Install rear wiper pivot cap (2).

Fig 2: Installing Rear Wiper Pivot Cap
Courtesy of SUZUKI OF AMERICA CORP.
Install rear wiper arm with blade assembly (1) to specified position as shown in figure.

Fig 3: Installing Rear Wiper Arm With Blade Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Tighten rear wiper arm nut to specified torque, and then install arm cover (1).
Tightening torque

Rear wiper arm nut (a): 8 N.m (0.8 kg-m, 6.0 lbf-ft)

Fig 4: Tightening Rear Wiper Arm Nut
Courtesy of SUZUKI OF AMERICA CORP.
Connect negative (-) cable to battery.
