Rear Wiper Motor Inspection

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Reference: REAR WIPER REMOVAL AND INSTALLATION

NOTE: Make sure that battery voltage is 12 V or more.

Make a mark (1) on rear wiper motor (2) stop position as shown.

Fig 1: Identifying Mark On Rear Wiper Motor
Courtesy of SUZUKI OF AMERICA CORP.
Check rear wiper motor for operation as follows.
- For motor operation
  1. Connect battery positive terminal to terminal "1" and its negative terminal to terminal "2".
  2. Check if motor reciprocation speed is as specification. If check result is not as specified, replace motor.
    Specification

    35 - 45 r/min (RPM)

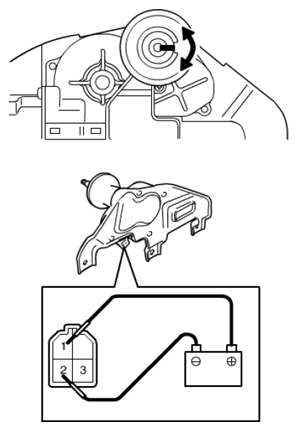

    Fig 2: Checking Rear Wiper Motor For Motor Operation
    Courtesy of SUZUKI OF AMERICA CORP.
- For automatic stop operation
  1. Connect battery positive (+) terminal to terminal "1" and its negative (-) terminal to terminal "2" and let the motor turn.
  2. Disconnect terminal "2" from battery negative (-) terminal and let the motor stop.
  3. Observe the motor (4) turns once again then stops at a specified position as shown.

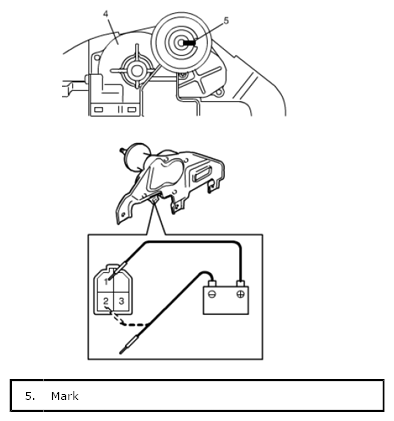

    Fig 3: Checking Rear Wiper Motor For Automatic Stop Operation
    Courtesy of SUZUKI OF AMERICA CORP.
  4. Repeat Step a. to c. several times and check that the motor stops at the specified position every time.
    If check result is not satisfied, replace motor.
