Trunk Lid Lock Assembly Removal and Installation (Sedan): Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Remove trunk lid trim (1) from trunk lid panel (if equipped).

Fig 1: Removing Trunk Lid Trim From Trunk Lid Panel
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect trunk lid latch control rod (1) from trunk lid.
(Keyless start model)
Disconnect trunk lid latch actuator coupler (3).
(Keyless start model)
Remove trunk lid latch actuator (2) from trunk lid.

Fig 2: Removing Trunk Lid Latch Actuator From Trunk
Courtesy of SUZUKI OF AMERICA CORP.
(Non-keyless start model)
Remove trunk lid lock cylinder (1) from trunk lid.

Fig 3: Removing Trunk Lid Lock Cylinder From Trunk Lid
Courtesy of SUZUKI OF AMERICA CORP.

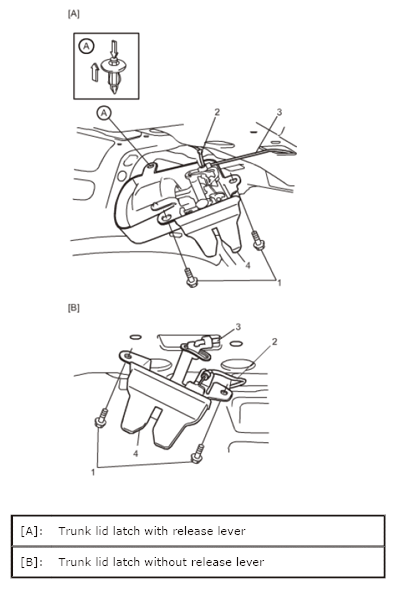

Remove trunk lid latch bolt (1), and then disconnect trunk lid opener wire (2) from trunk lid latch (4).
Remove trunk lid latch (4) with trunk lid latch control rod (3).

Fig 4: Removing Trunk Lid Latch With Trunk Lid Latch Control Rod
