Rear End Door Opener Switch Inspection (Hatchback)
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
- Remove rear end door trim.
- Disconnect rear end door switch coupler.

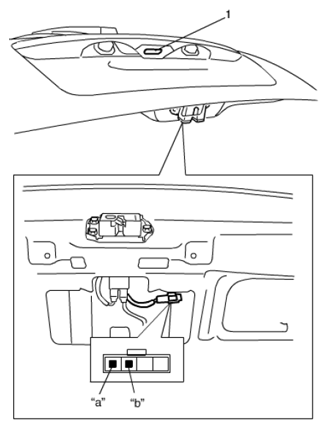

- Check that there is continuity between terminals "a" and "b" when rear end door opener switch (1) is pushed.
- Check that there is no continuity between terminals when rear end door opener switch (1) is not pushed.
If check result is not as specified, replace switch.
