Rear End Door Lock Assembly Removal and Installation (Hatchback): Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Remove door trim (1) from rear end door panel (2).

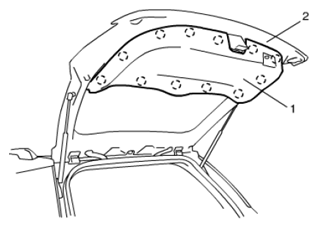

Fig 1: Removing Door Trim From Rear End Door Panel
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect door lock motor lead wire.
Loosen door latch bolts (1) and remove door latch assembly (2).

Fig 2: Removing Door Latch Bolts
Courtesy of SUZUKI OF AMERICA CORP.
