DTC No. 51/52/53: Driver Side/Passenger Side/Rear End Door/Trunk Lid Request Switch Failure: Wiring Diagram

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

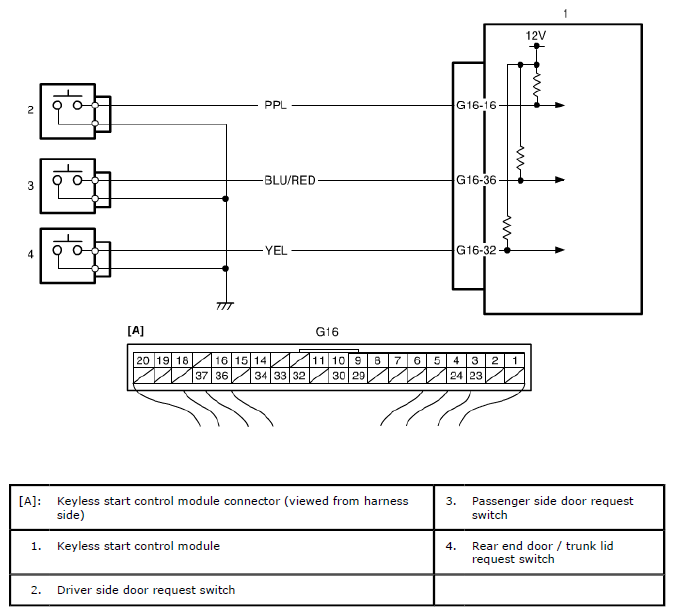

Fig 1: Driver Side/Passenger Side/Rear End Door/Trunk Lid Request Switch Wiring Diagram
G06869307Courtesy of SUZUKI OF AMERICA CORP.
