Front Door Assembly Components
WARNING:
This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

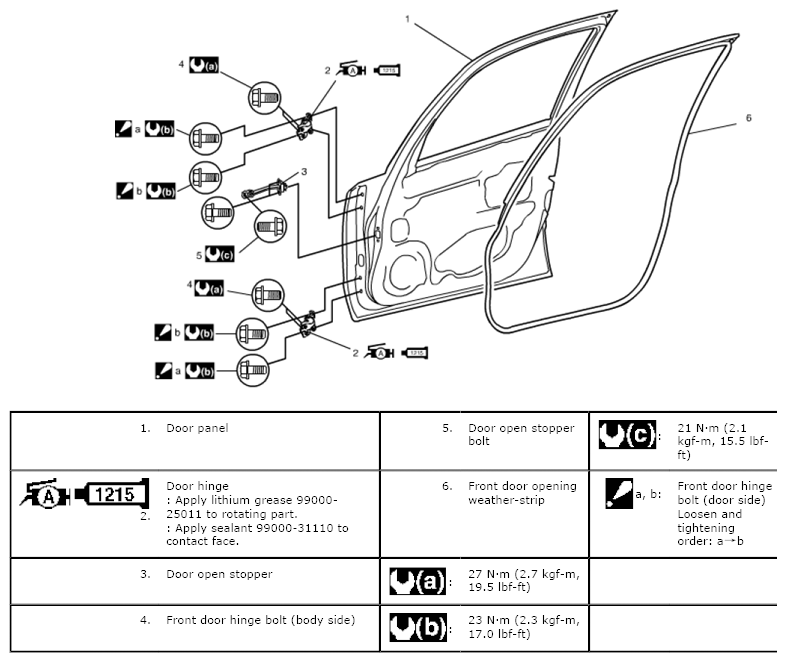

Fig 1: Identifying Front Door Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
