Section 105 (Drive Shaft/Axle - Front)
>>
Repair Instructions
>>
Front Drive Shaft Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Drive Shaft Components
WARNING:
This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

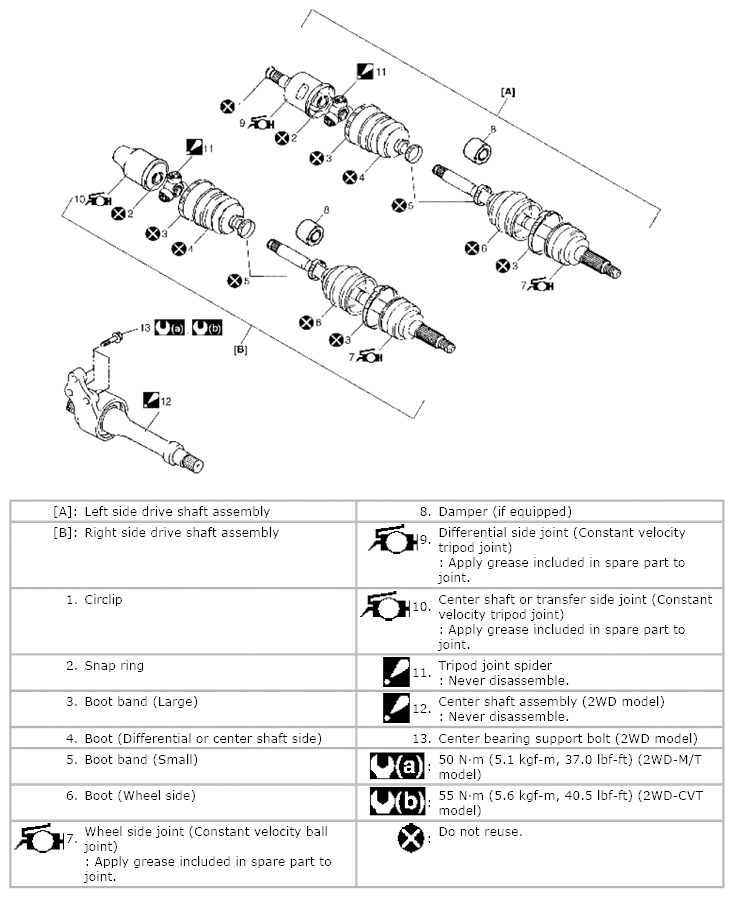

Fig 1: Front Drive Shaft Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
