Propeller Shaft Assembly Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Hoist vehicle.
Before removing propeller shaft assembly, give match marks (2) on joint flange and propeller shaft as shown.
Separate propeller shaft assembly (1) from transfer output flange and rear differential flange.

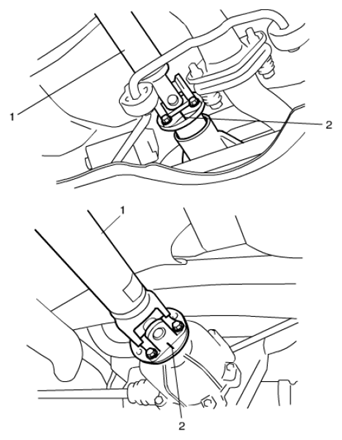

Fig 1: Identifying Match Marks On Joint Flange And Propeller Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Remove propeller shaft by removing center support nuts (1).
CAUTION: Dropping the propeller shaft can lead to vibration during operation of the vehicle. Take necessary measures to prevent the propeller shaft from dropping during removal.

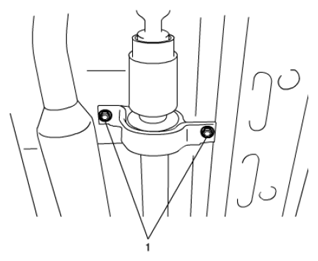

Fig 2: Identifying Center Support Nuts
Courtesy of SUZUKI OF AMERICA CORP.
