EVAP System Leak Inspection (EVAP Leak Check Model): Locations

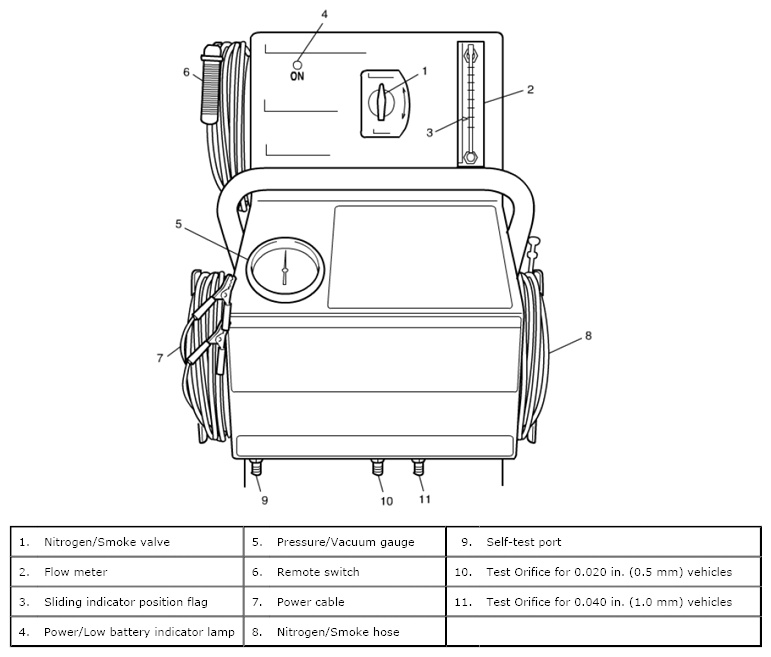

Fig 1: Identifying Evaporative Emission System Tester Components Locations
G06866855Courtesy of SUZUKI OF AMERICA CORP.
