Mass Air Flow (MAF) & Intake Air Temperature (IAT) Sensor Removal and Installation: Removal

  1. Disconnect negative cable from battery.
  2. Disconnect MAF & IAT sensor connector.
  3. Remove MAF & IAT sensor (1) from air cleaner case.

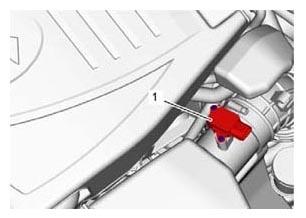

    Fig 1: Identifying IAT Sensor
    G06868212Courtesy of SUZUKI OF AMERICA CORP.
