Oil Pan and Oil Pump Strainer Removal and Installation: Installation

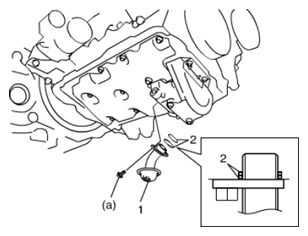

Apply engine oil to new O-rings (2) and install them to oil strainer (1).
Install oil strainer (1) to oil pump.
Tightening torque

Oil strainer bolt (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)

Fig 1: Installing Oil Strainer To Oil Pump
Courtesy of SUZUKI OF AMERICA CORP.
Install dowel pins (1) to oil pan.

Fig 2: Installing Dowel Pins To Oil Pan
Courtesy of SUZUKI OF AMERICA CORP.

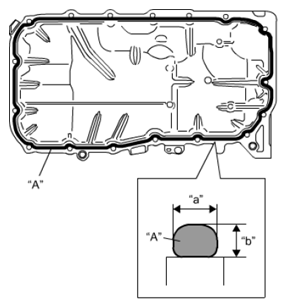

Apply sealant to oil pan mating surface as shown in the figure.
"A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)

Sealant amount for oil pan

Width "a": 3 mm (0.12 in.)

Height "b": 2 mm (0.08 in.)

Fig 3: Identifying Sealant Amount For Oil Pan
Courtesy of SUZUKI OF AMERICA CORP.

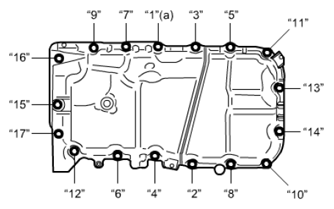

Install oil pan according to the following procedure.
1. Fit oil pan to lower crank case.
2. Tighten oil pan bolts to 15 N.m (1.5 kgf-m, 11.0 lbf-ft) in numerical order ("1" - "17") evenly and gradually.
3. In the same manner as Step b), retighten them to 25 N.m (2.5 kgf-m, 18.5 lbf-ft).
  Tightening torque

  Oil pan bolt* (a): 15 N.m → 25 N.m (1.5 kgf-m → 2.5 kgf-m, 11.0 lbf-ft → 18.5 lbf-ft)

  Fig 4: Identifying Oil Pan Bolts
  Courtesy of SUZUKI OF AMERICA CORP.

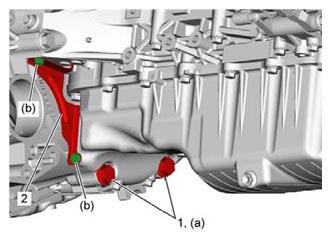

Install transaxle bolts (1) and then drive plate cover (2) for CVT model, or clutch housing lower plate (2) for M/T model.
Tightening torque

Transaxle bolt (a): 85 N.m (8.7 kg-m, 63.0 lbf-ft)

Drive plate cover bolt (b): 11 N.m (1.1 kg-m, 8.5 lbf-ft) (CVT model)

Clutch housing lower plate bolt (b): 11 N.m (1.1 kg-m, 8.5 lbf-ft) (M/T model)

Fig 5: Identifying Clutch Housing Lower Plate Bolt And Drive Plate Cover Bolt
Courtesy of SUZUKI OF AMERICA CORP.

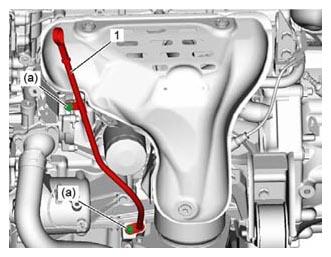

Install oil level gauge and oil level gauge guide (1).
Tightening torque

Oil level gauge guide bolt (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)

Fig 6: Identifying Oil Level Gauge Guide Bolt
Courtesy of SUZUKI OF AMERICA CORP.

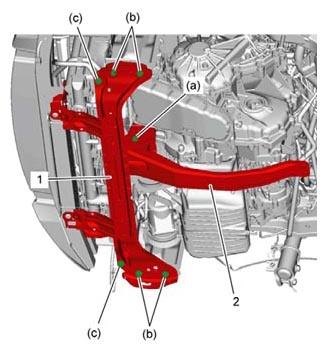

Install engine front mounting member (1) and mounting member (2).
Tightening torque

Engine front mounting bolt (a): 55 N.m (5.6 kg-m, 40.5 lbf-ft)

Engine front mounting member No. 1 bolt (b): 55 N.m (5.6 kg-m, 40.5 lbf-ft)

Engine front mounting member No. 2 bolt (c): 59 N.m (6.0 kg-m, 43.5 lbf-ft)

Fig 7: Installing Engine Front Mounting Member And Mounting Member
Courtesy of SUZUKI OF AMERICA CORP.
Install front suspension frame.
- 2WD model: See FRONT SUSPENSION FRAME, STABILIZER BAR AND/OR BUSH REMOVAL AND INSTALLATION (2WD MODEL) .
- 4WD model: See FRONT SUSPENSION FRAME, STABILIZER BAR AND/OR BUSH REMOVAL AND INSTALLATION (4WD MODEL) .
For CVT model, attach CVT fluid cooler to engine front mounting member. See CVT FLUID COOLER REMOVAL AND INSTALLATION .
Install front bumper. See FRONT BUMPER AND REAR BUMPER COMPONENTS .
Install drain plug and refill engine with engine oil. See ENGINE OIL AND FILTER CHANGE .
Verify that there is no oil leakage and exhaust gas leakage at each connection.
Install right and left side engine under covers.
