Cranking System Circuit Diagram

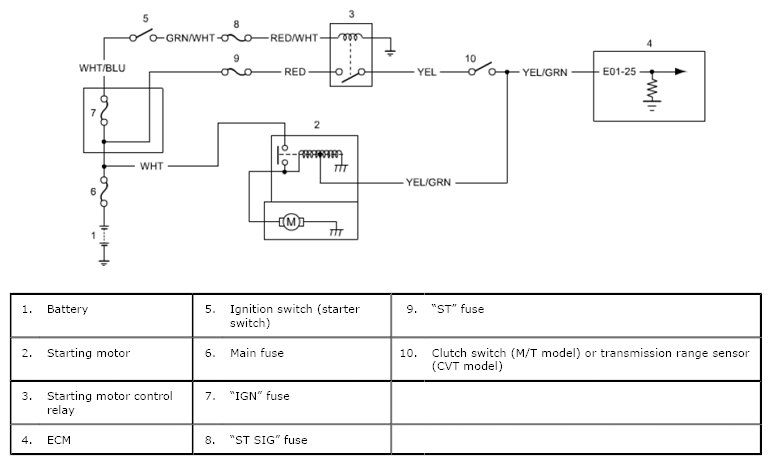

Fig 1: Cranking System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
