Hold-in coil open circuit test

Check for continuity between magnetic switch "S" terminal (1) and coil case. If there is no continuity, coil is open and magnetic switch should be replaced.

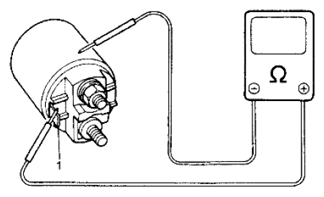

Fig 1: Checking Continuity For Hold-In Coil Open Circuit Test

Courtesy of SUZUKI OF AMERICA CORP.
