Rear End Door Switch Inspection (Hatchback)

Check for continuity between terminal "a" and "b" shown in the following.

If check result is not as specified, replace switch.

Rear end door switch specification

Rear end door closed: No continuity

Rear end door opened: Continuity

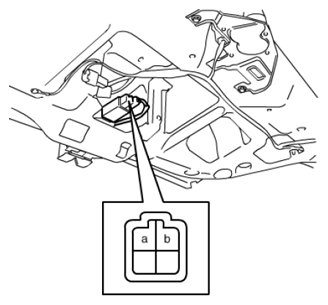

Fig 1: Checking Rear End Door Switch Continuity

Courtesy of SUZUKI OF AMERICA CORP.
