Door Switch (Front/Rear Door) Inspection

Remove door switch from body and check switch for continuity. If found defective, replace switch.

Door switch (front/rear door) specification

OFF position (Door closed): No continuity

ON position (Door open): Continuity

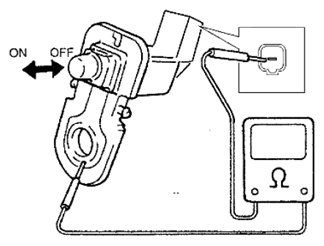

Fig 1: Checking Door Switch (Front/Rear Door) Continuity
G06869159Courtesy of SUZUKI OF AMERICA CORP.
