Battery Removal and Installation: Removal

  1. Disconnect negative (-) cable (3).
  2. Disconnect positive (+) cable (2).
  3. Remove retainer (4).
  4. Remove battery (1).

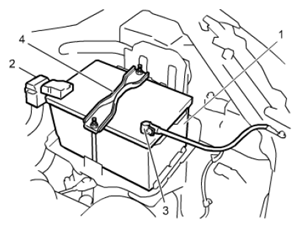

    Fig 1: Identifying Battery Components
    G06867270Courtesy of SUZUKI OF AMERICA CORP.
