F-1 Air Bag System Circuit Diagram (4ch)

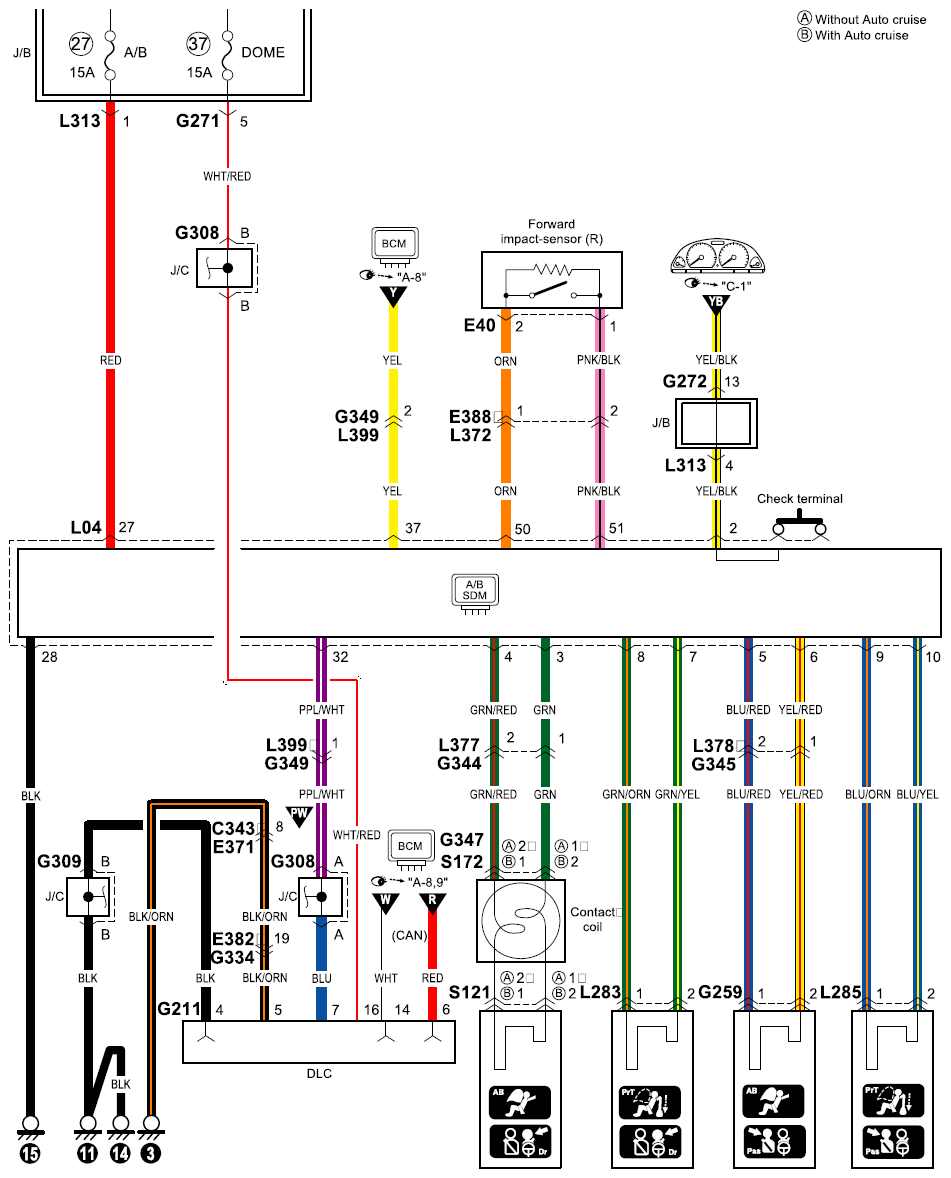

Fig 1: F-1 Air Bag System Circuit Diagram (4CH)
Courtesy of SUZUKI OF AMERICA CORP.
