B-8 Seat Heater Circuit Diagram

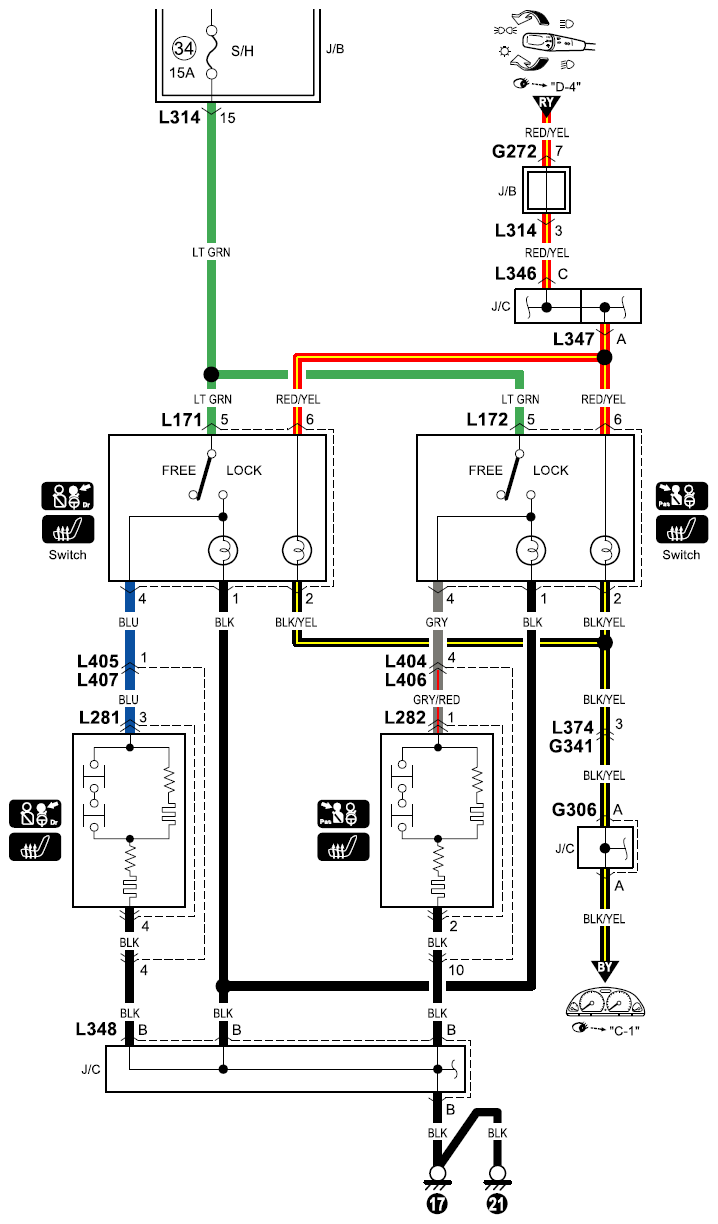

Fig 1: B-8 Seat Heater Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
