B-1 Windshield Wiper and Washer Circuit Diagram

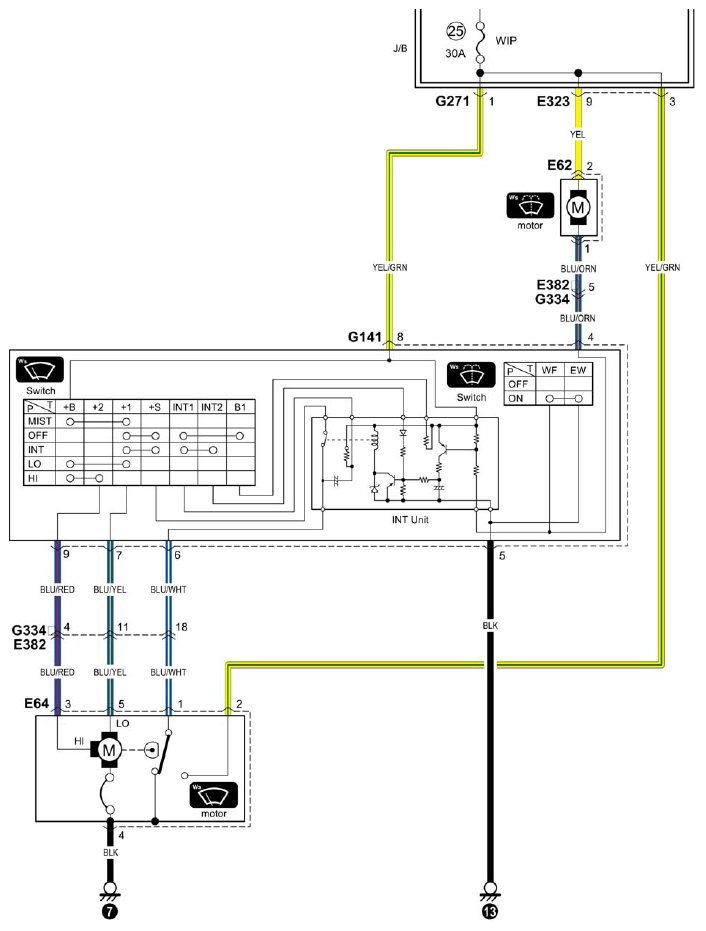

Fig 1: B-1 Windshield Wiper And Washer Circuit Diagram
G06871236Courtesy of SUZUKI OF AMERICA CORP.
