Power Supply Diagram

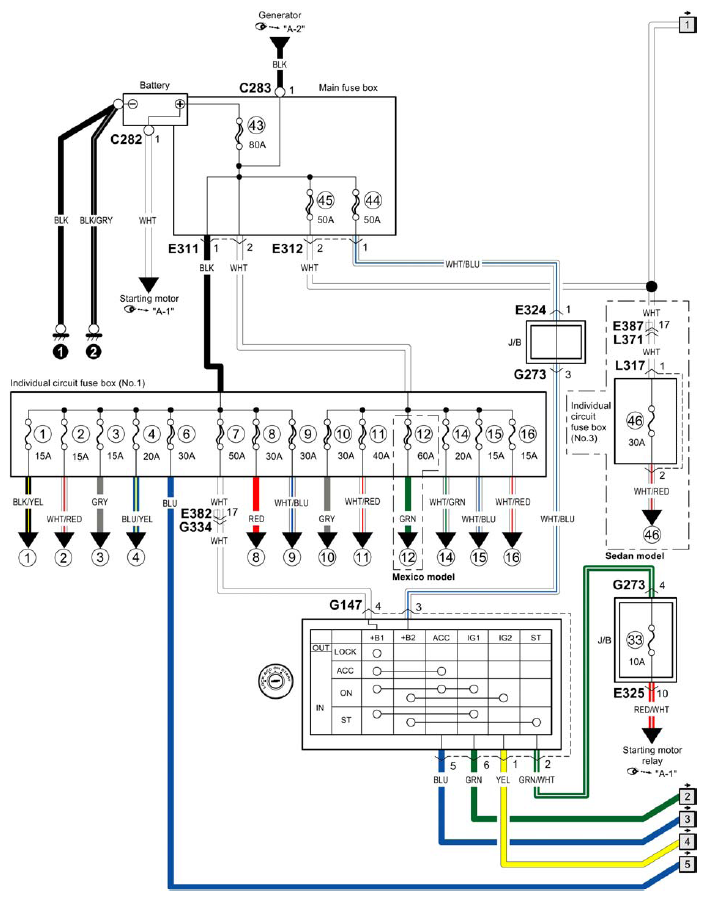

Fig 1: Power Supply Diagram (1 Of 2)
G06871203Courtesy of SUZUKI OF AMERICA CORP.

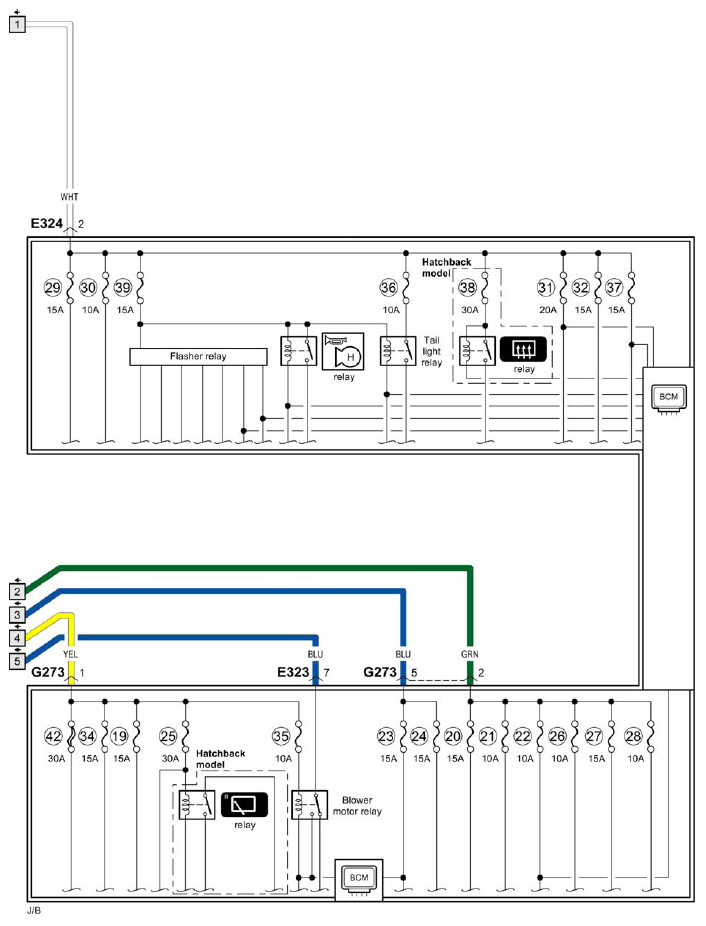

Fig 2: Power Supply Diagram (2 Of 2)
G06871204Courtesy of SUZUKI OF AMERICA CORP.
