Junction Block Inner Circuit (Overview): Abbreviations

HARNESS REFERENCE CHART

Abbreviation	Full term	Abbreviation	Full term
AS	Assistant (Front passenger)	LP	Lamp
CTR	Center	O/H	Over head
DR	Driver	R/B	Relay box
F-L	Front L	R-L	Rear L
F-R	Front R	R-R	Rear R
FR	Front	RR	Rear
INP	Instrument panel	S/H	Seat heater
LEV	(Head light) leveling

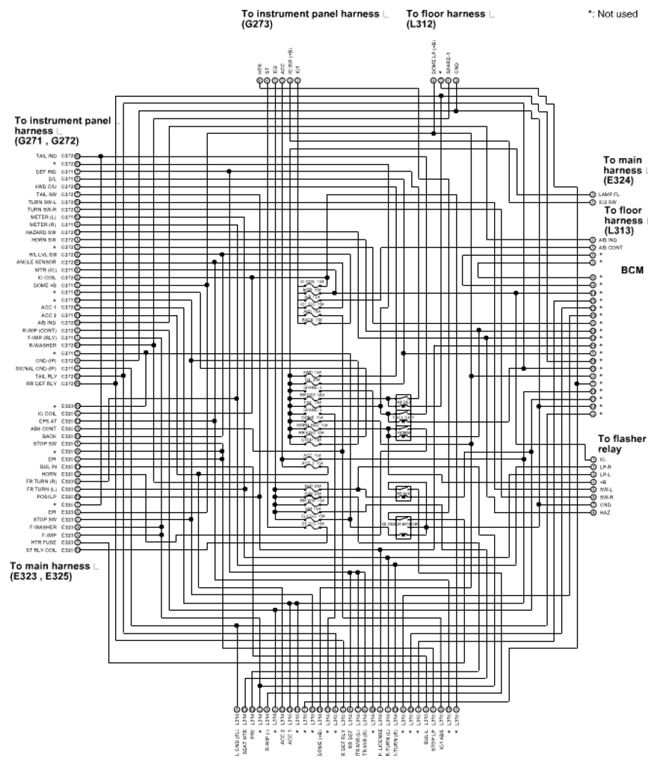

Fig 1: Junction Block Inner Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.
