Body Electrical Control System Wiring Circuit Diagram
Reference:
BCM GENERAL DESCRIPTION

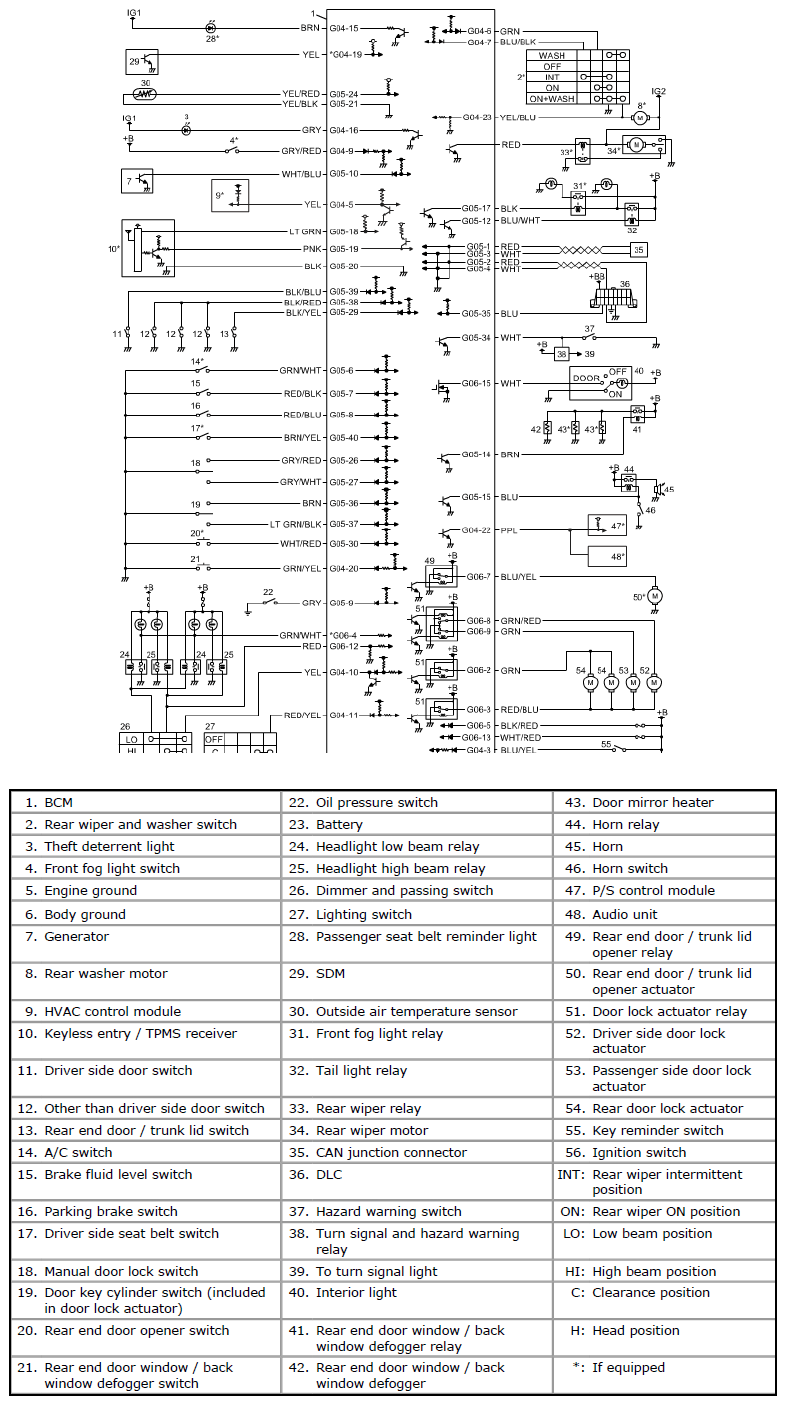

Fig 1: Body Electrical Control System - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
