4WD Control System Circuit Diagram: Notes

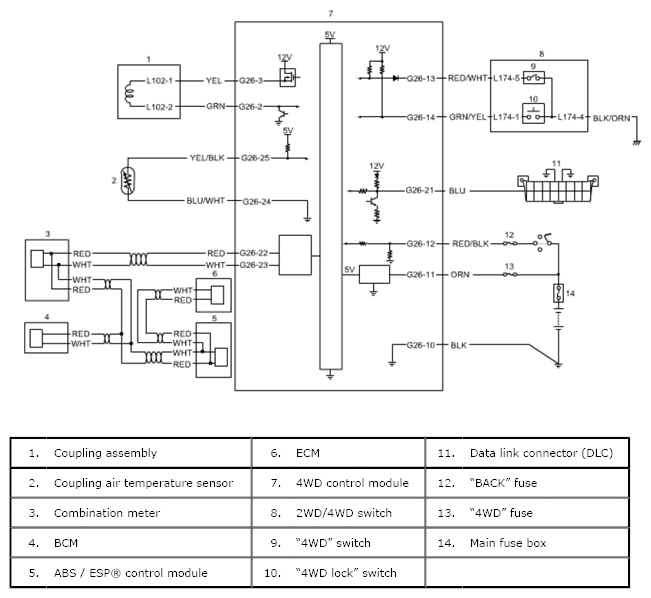

Fig 1: 4WD Control System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
