Rear Differential Oil Level Check
- Lift up vehicle and check oil leakage. Repair leaky point, if any.

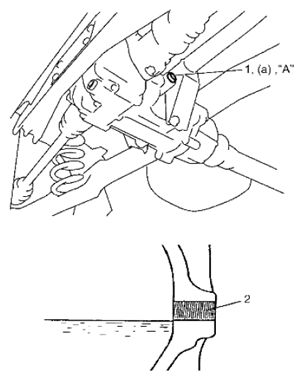

- Remove oil level/filler plug (1) and check oil contamination and oil level is lower end of oil level/filler plug hole (2).
If oil is excessive dirty or insufficient, replace oil or pour specified oil up to plug hole.
- Apply sealant to thread of level/filler plug, and then tighten it to specified torque.
"A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)
Tightening torque
Differential oil level/filler plug (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)
