Rear Differential Components

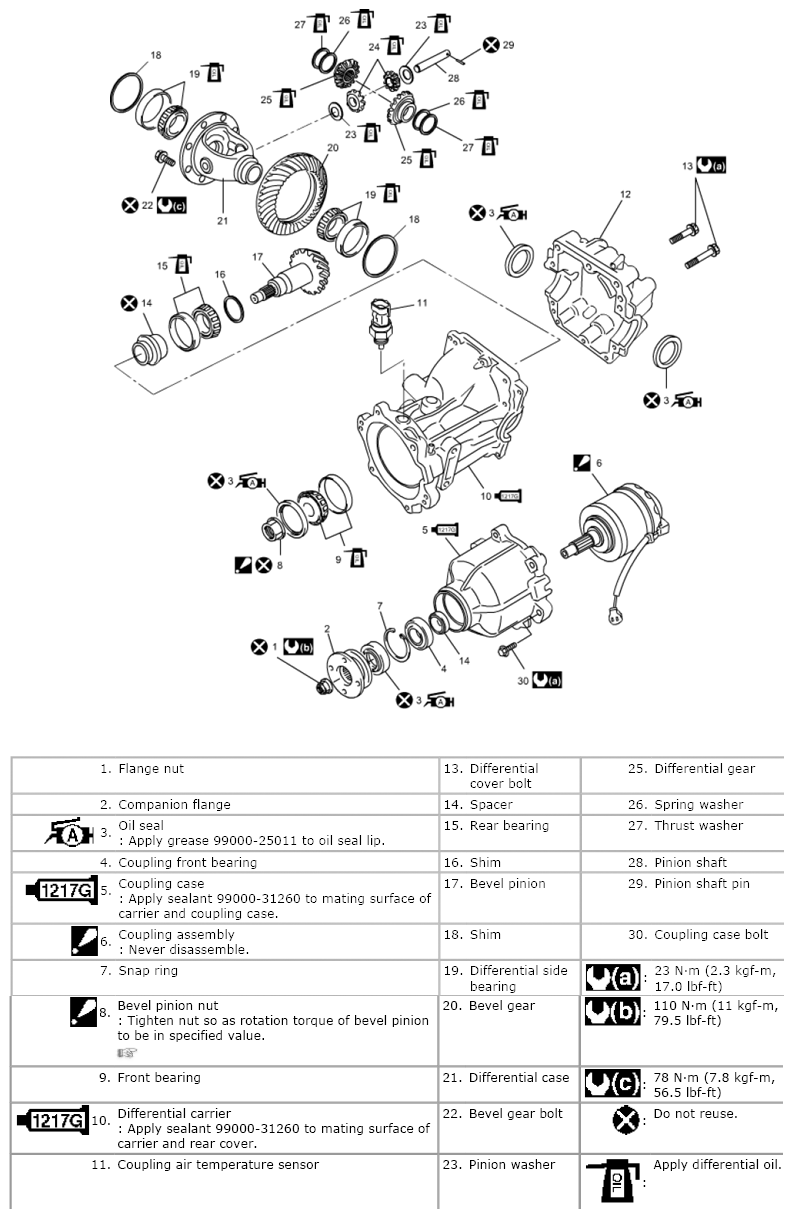

Fig 1: Identifying Rear Differential Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
