2012
>>
SX4 Base
>>
Repair and Diagnosis
>>
Drivelines & Axles
>>
Differentials & Drive Axles
>>
Differential Assembly
>>
Diagnostic Information and Procedures
>>
DTC C1252: Coupling Assembly Circuit Open
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

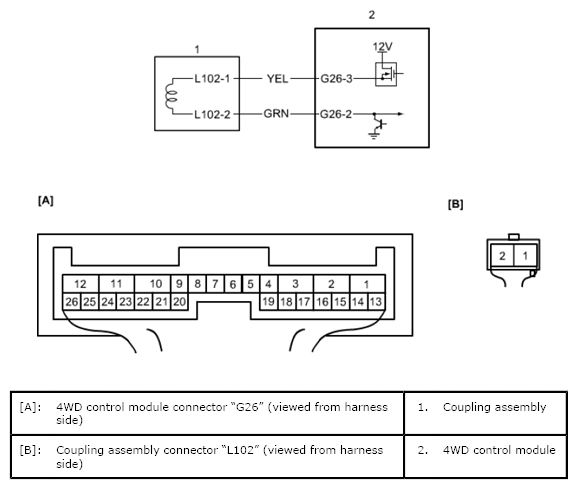

Fig 1: Coupling Assembly Circuit - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
