ESP® Warning Light Does Not Come ON at Ignition Switch ON: Wiring Diagram

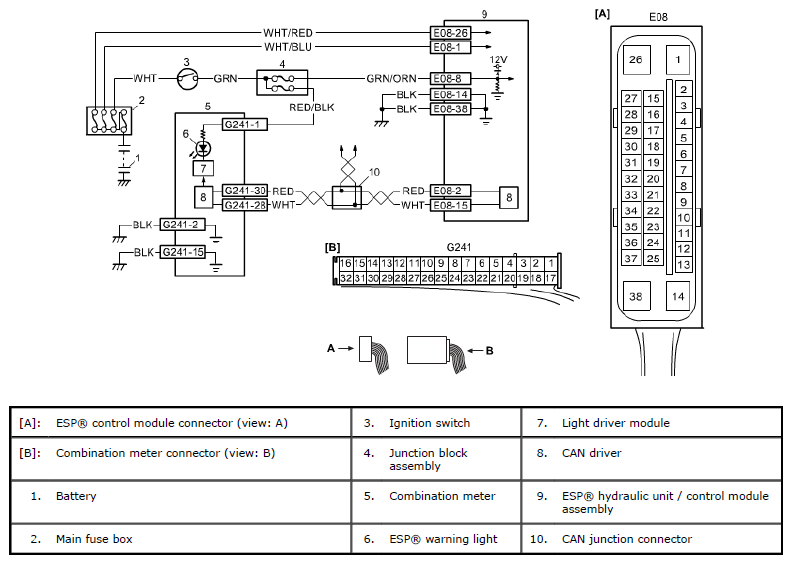

Fig 1: ESP® Warning Light - Wiring Diagram
G06866688Courtesy of SUZUKI OF AMERICA CORP.
