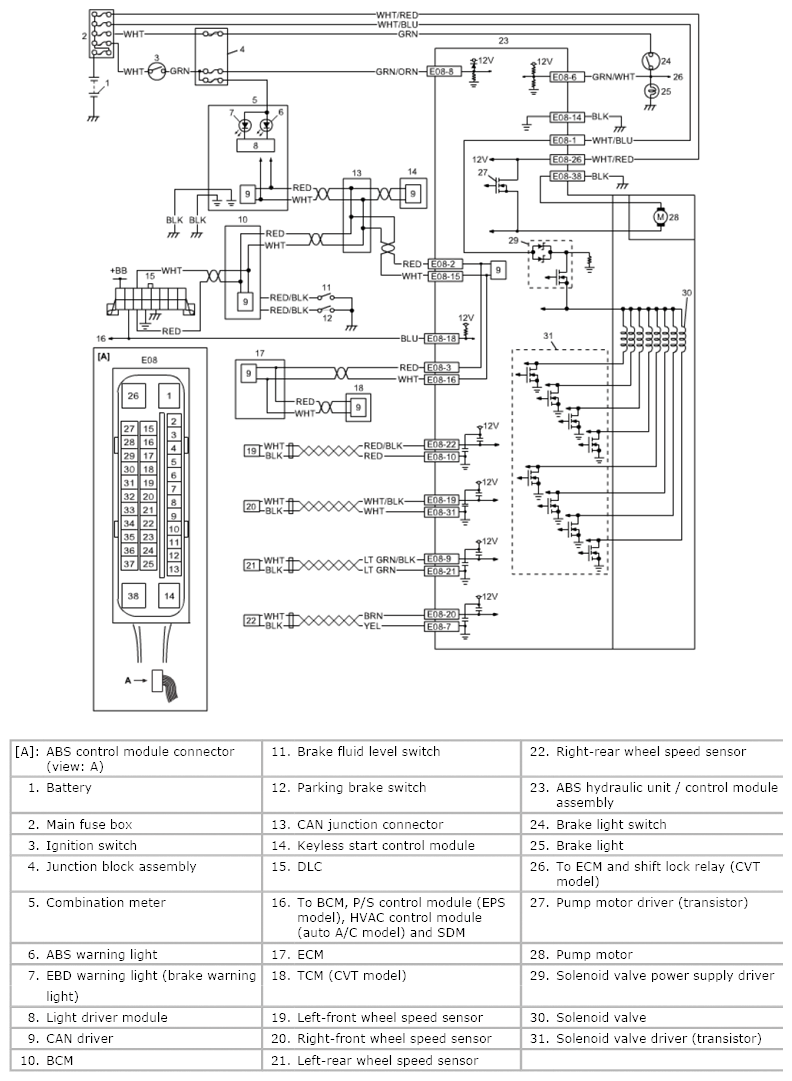

ABS Wiring Circuit Diagram
ABS WIRING CIRCUIT REFERENCE CHART
| Terminal | Circuit | |
|---|---|---|
| E08 | 1 | Power supply for solenoid valve |
| 2 | CAN communication line (high) to CAN junction connector | |
| 3 | CAN communication line (high) to ECM | |
| 4 | - | |
| 5 | - | |
| 6 | Brake light switch | |
| 7 | Right-rear wheel speed sensor (-) | |
| 8 | Ignition switch | |
| 9 | Left-rear wheel speed sensor (+) | |
| 10 | Left-front wheel speed sensor (-) | |
| 11 | - | |
| 12 | - | |
| 13 | - | |
| 14 | Ground for solenoid valve | |
| 15 | CAN communication line (low) to CAN junction connector | |
| 16 | CAN communication line (low) to ECM | |
| 17 | - | |
| 18 | DLC | |
| 19 | Right-front wheel speed sensor (+) | |
| 20 | Right-rear wheel speed sensor (+) | |
| 21 | Left-rear wheel speed sensor (-) | |
| 22 | Left-front wheel speed sensor (+) | |
| 23 | - | |
| 24 | - | |
| 25 | - | |
| 26 | Power supply for pump motor | |
| 27 | - | |
| 28 | - | |
| 29 | - | |
| 30 | - | |
| 31 | Right-front wheel speed sensor (-) | |
| 32 | - | |
| 33 | - | |
| 34 | - | |
| 35 | - | |
| 36 | - | |
| 37 | - | |
| 38 | Ground for pump motor | |
