ABS Input/Output Block Diagram

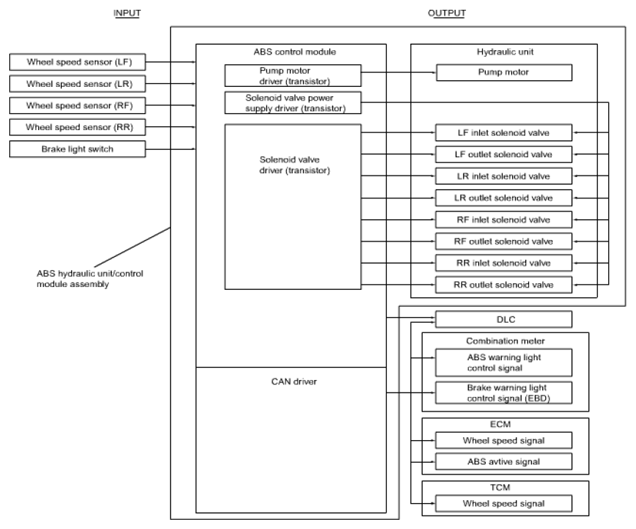

Fig 1: ABS Input/Output Block Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
