Front and Rear Wheel Speed Sensor On-Vehicle Inspection: Reference

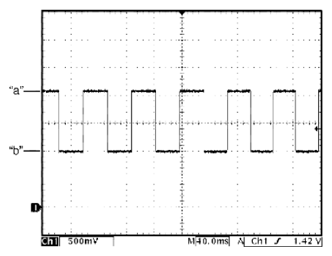

When using oscilloscope for this check, check if peak-to-peak voltage and waveform meet specification.
Peak-to-peak voltage at the resistance (115 Ω) with wheel rotation
High voltage "a": 1360 to 1930 mV
Low voltage "b": 680 to 960 mV
