Front Wheel Speed Sensor Removal and Installation: Removal

Disconnect negative (-) cable from battery.
Disconnect front wheel speed sensor connector (1).
Hoist vehicle and remove wheel.
Remove harness clamp, clamp bolt (2).
Remove front wheel speed sensor (3) from knuckle.

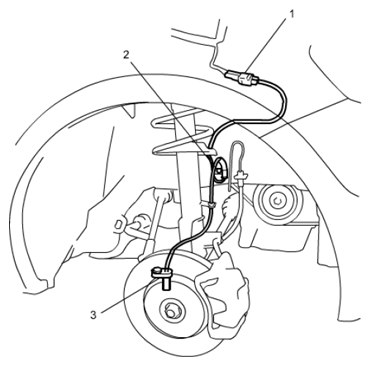

Fig 1: Identifying Wheel Speed Sensor
Courtesy of SUZUKI OF AMERICA CORP.
