Front Wheel Speed Sensor Removal and Installation: Installation

Reference: FRONT AND REAR WHEEL SPEED SENSOR INSPECTION

1. Check that no foreign material is attached to sensor (1) and wheel speed sensor encoder (included in wheel hub assembly).
2. Install it by reversing removal procedure.
   NOTE: Before fitting wheel speed sensor, be sure to silicon grease to its O-ring.

   Tightening torque

   Front wheel speed sensor bolt (a): 11 N.m (1.1 kg-m, 8.0 lbf-ft)

   Front wheel speed sensor harness clamp bolt (b): 11 N.m (1.1 kg-m, 8.0 lbf-ft)

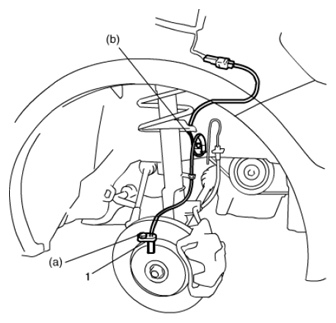

   Fig 1: Identifying Front Wheel Speed Sensor Harness Clamp Bolt And Front Wheel Speed Sensor Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
3. Check that there is no clearance between sensor (1) and knuckle.
   Fig 2: Checking Clearance Between Sensor And Knuckle

   Courtesy of SUZUKI OF AMERICA CORP.
