Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System (Abs)
>>
Diagnostic Information and Procedures
>>
Serial Data Link Circuit Check
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

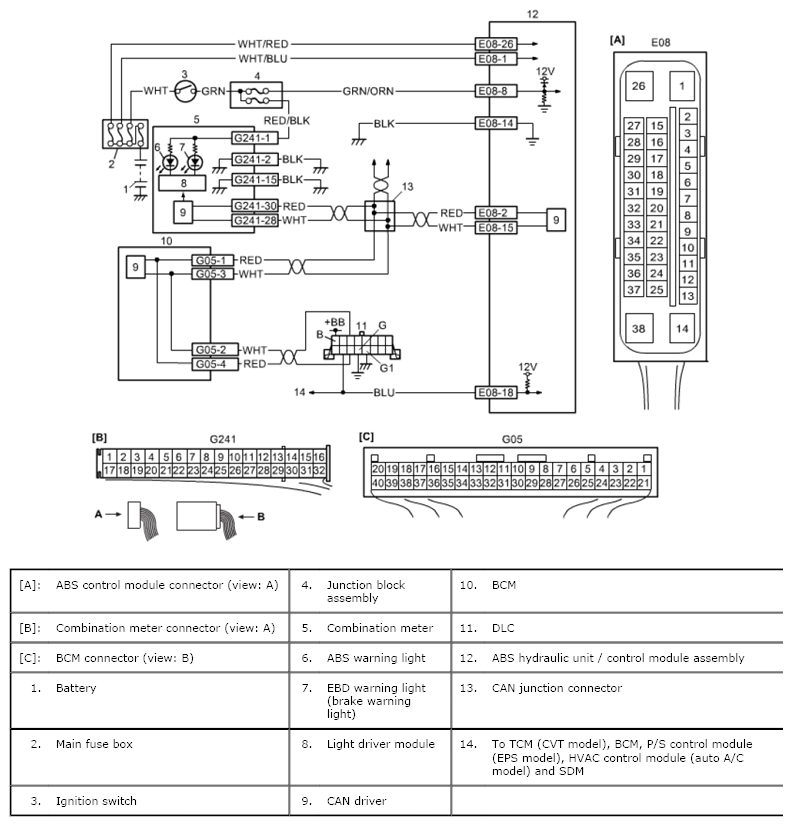

Fig 1: Serial Data Link Circuit - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
