Parking Brake Cable Components

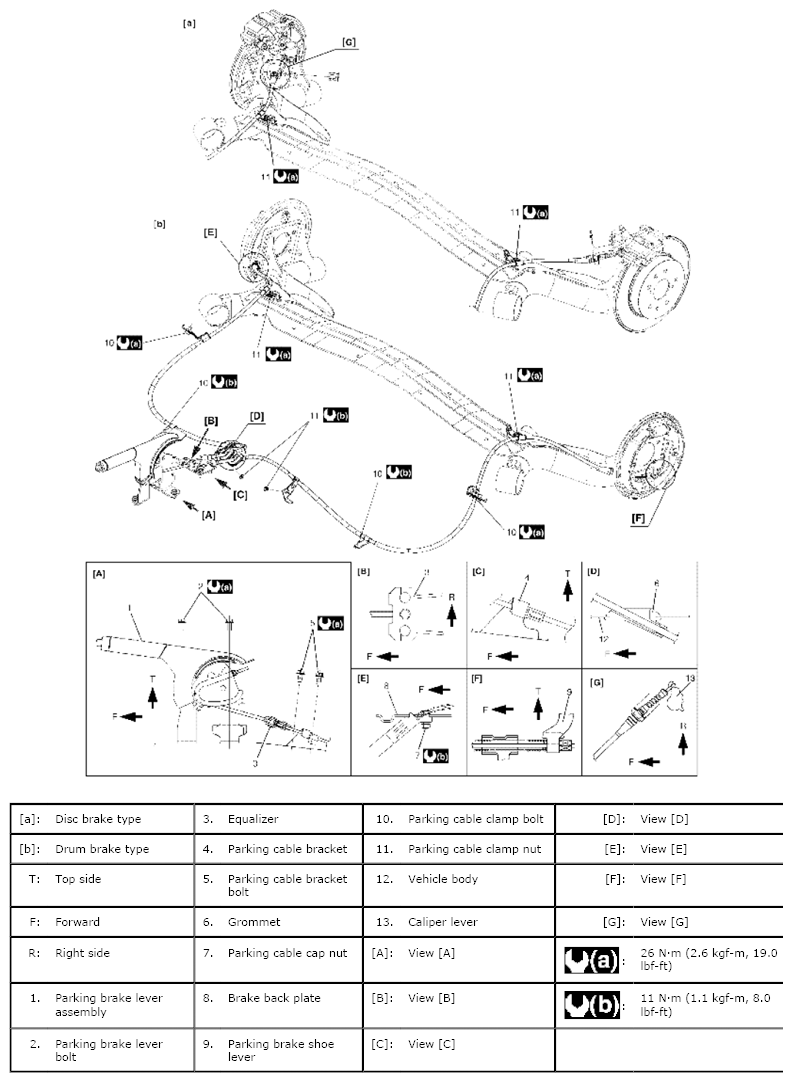

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications
G06868543Courtesy of SUZUKI OF AMERICA CORP.
