Rear Door Window Regulator Removal and Installation: Removal

  1. Remove door glass referring to REAR DOOR GLASS REMOVAL AND INSTALLATION .
  2. Disconnect power window motor lead wire at coupler.
  3. Loosen regulator mounting screws, and then remove rear window regulator (1).

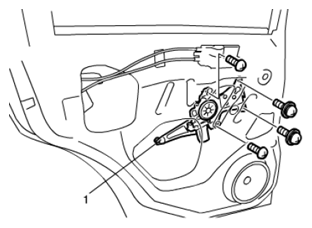

    Fig 1: Removing Rear Window Regulator
    G06868868Courtesy of SUZUKI OF AMERICA CORP.
