Rear Door Window Regulator Removal and Installation: Installation

Reference: REAR DOOR WINDOW REGULATOR INSPECTION

Reverse removal procedure noting the following.

• Apply grease to sliding and rotating portions of window regulator.

  : Grease 99000-25011 (SUZUKI Super Grease A)

• Tighten rear door window regulator attaching screws.

  Rear door window regulator screw tightening order

  (1) → (2)

  Tightening torque

  Rear door window regulator screw (a): 8.5 N.m (0.87 kgf-m, 6.5 lbf-ft)

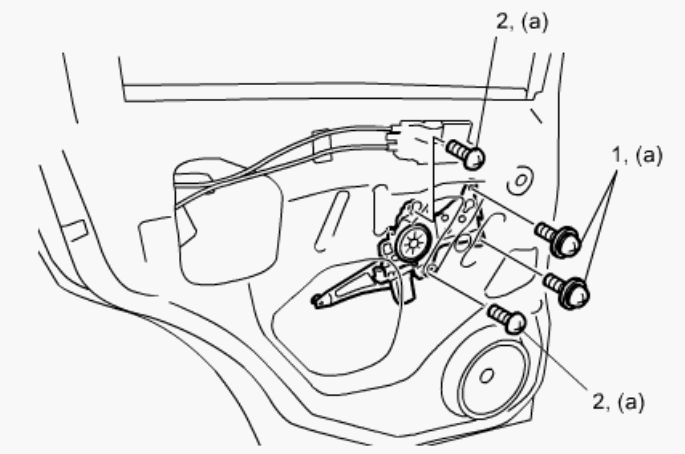

  Fig 1: Identifying Rear Door Window Regulator Screw Tightening Order

  Courtesy of SUZUKI OF AMERICA CORP.
