Rear Door Glass Removal and Installation: Removal

Remove rear door inner garnish (1) (Hatchback).
Remove door trim mounting screws (2).

Fig 1: Removing Door Trim Mounting Screws
Courtesy of SUZUKI OF AMERICA CORP.
Remove door trim (1) as shown in figure.

Fig 2: Removing Door Trim
Courtesy of SUZUKI OF AMERICA CORP.
Remove door outer garnish (1) (Hatchback).
Remove door outer weather-strip (2).

Fig 3: Removing Door Outer Weather-Strip
Courtesy of SUZUKI OF AMERICA CORP.
Remove door inner weather-strip (3).
Remove door trim bracket (1).
Remove door sealing cover (2).

Fig 4: Removing Door Sealing Cover
Courtesy of SUZUKI OF AMERICA CORP.

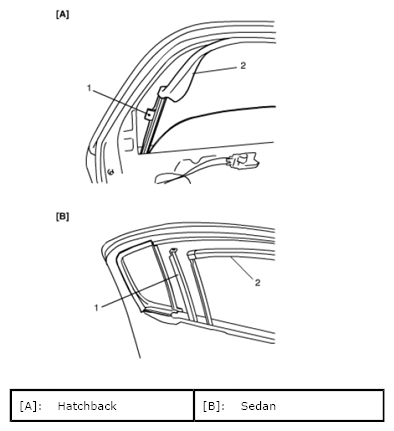

Detach rear part of glass run (2) with rear door sash (1).

Fig 5: Detaching Rear Part Of Glass Run With Rear Door Sash
Courtesy of SUZUKI OF AMERICA CORP.
Remove rear door partition glass (1) with rear door partition weather-strip (2) (Sedan).

Fig 6: Removing Rear Door Partition Glass With Rear Door Partition Weather-Strip
Courtesy of SUZUKI OF AMERICA CORP.
Remove door glass as shown in figure.

Fig 7: Removing Door Glass
Courtesy of SUZUKI OF AMERICA CORP.
