Door Mirror Heater Inspection (If Equipped)

Reference: DOOR MIRROR REMOVAL AND INSTALLATION

1. Remove door trim referring to step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .
2. Disconnect door mirror connector (1).
3. Check for continuity between terminals "a" and "b".

   If no continuity, replace outside mirror.

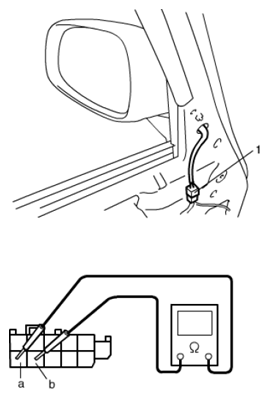

   Fig 1: Inspecting Door Mirror Heater

   Courtesy of SUZUKI OF AMERICA CORP.
