Back Window Removal and Installation (Sedan)
Reference: BACK WINDOW COMPONENTS (SEDAN)
Refer to WINDSHIELD REMOVAL AND INSTALLATION as preparation, removal and installation procedures are basically the same. However, note the following.
- Observe the following precautions when applying adhesive (1) along glass (2) edge.
- Adhesive (1) should be applied evenly especially in height.
- Be careful not to damage primer (3).
- Press glass against body quickly after adhesive (1) is applied.

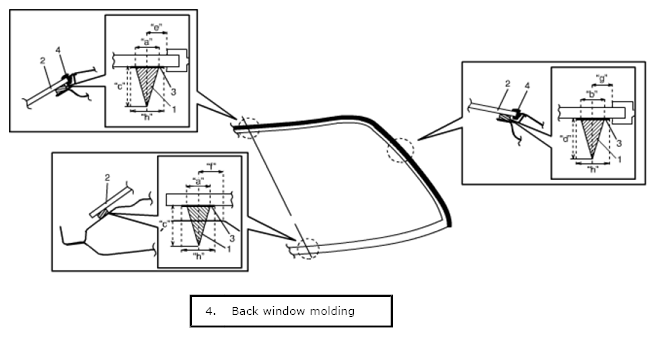

Adhesive amount specifications and position for back window
Width "a": 7.0 mm (0.28 in.)
Width "b": 7.4 mm (0.29 in.)
Height "c": 13.0 mm (0.51 in.)
Height "d": 12.3 mm (0.48 in.)
Position "e": 6.0 mm (0.24 in.)
Position "f": 10.4 mm (0.41 in.)
Position "g": 6.3 mm (0.25 in.)
Width "h": 14.0 mm (0.55 in.)
