Panel Clearance (2013)

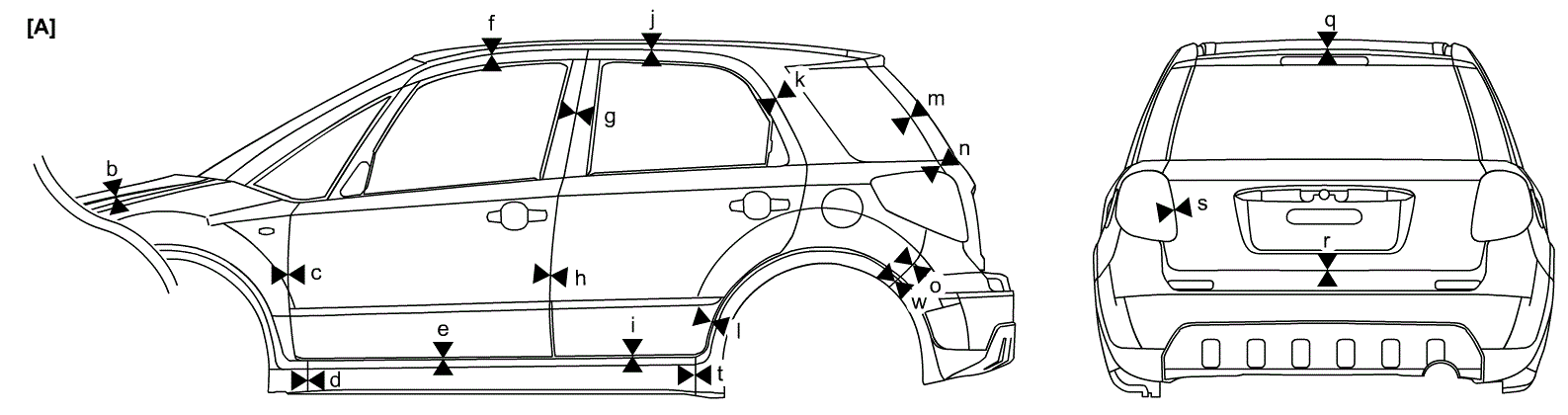

Fig 1: Identifying Panel Clearance (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

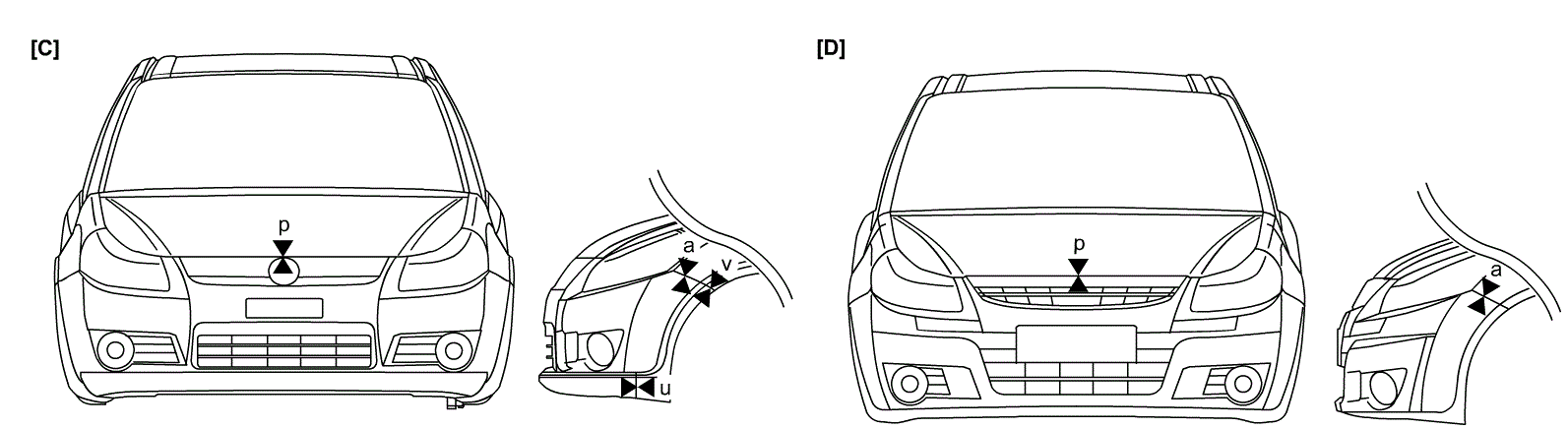

Fig 2: Identifying Panel Clearance (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

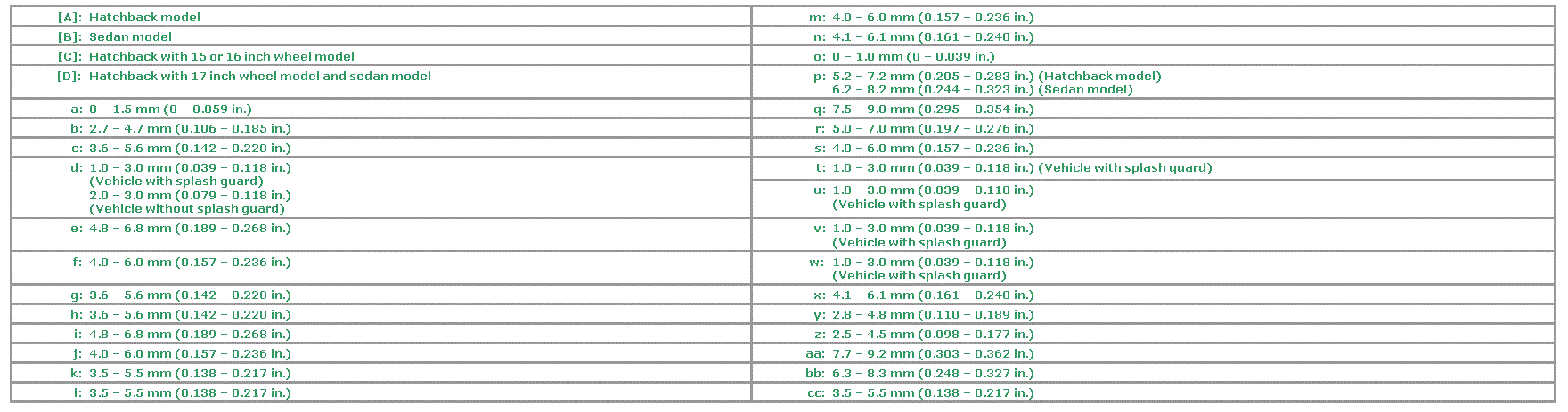

Fig 3: Identifying Panel Clearance (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

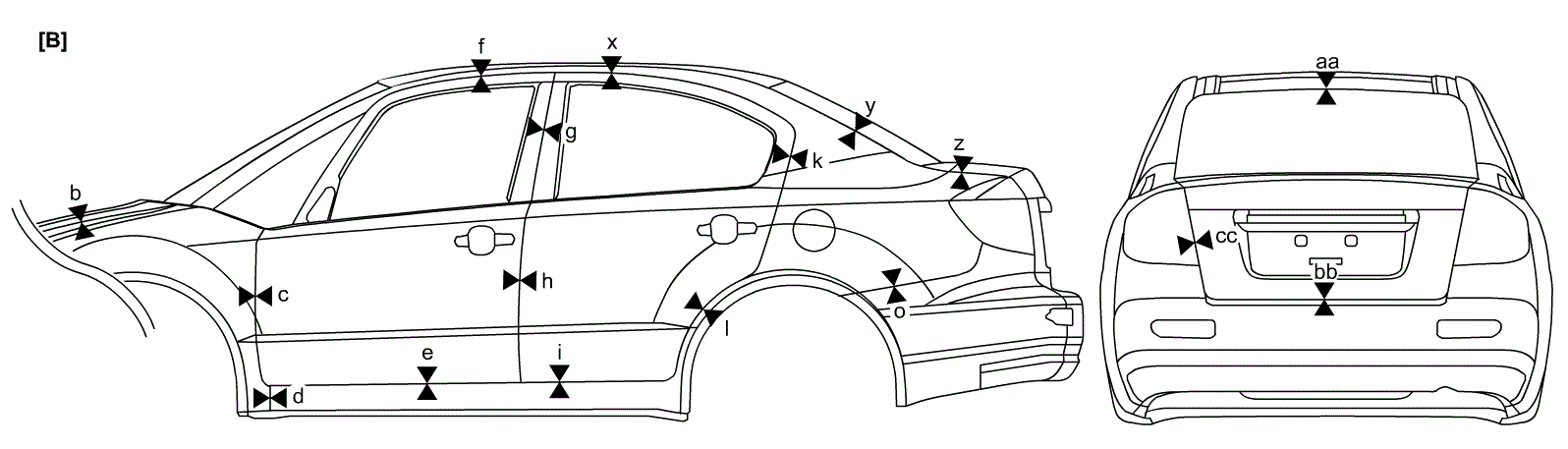

Fig 4: Panel-To-Panel Distance

Courtesy of SUZUKI OF AMERICA CORP.
