Trunk Lid Lock Assembly Components (Sedan)

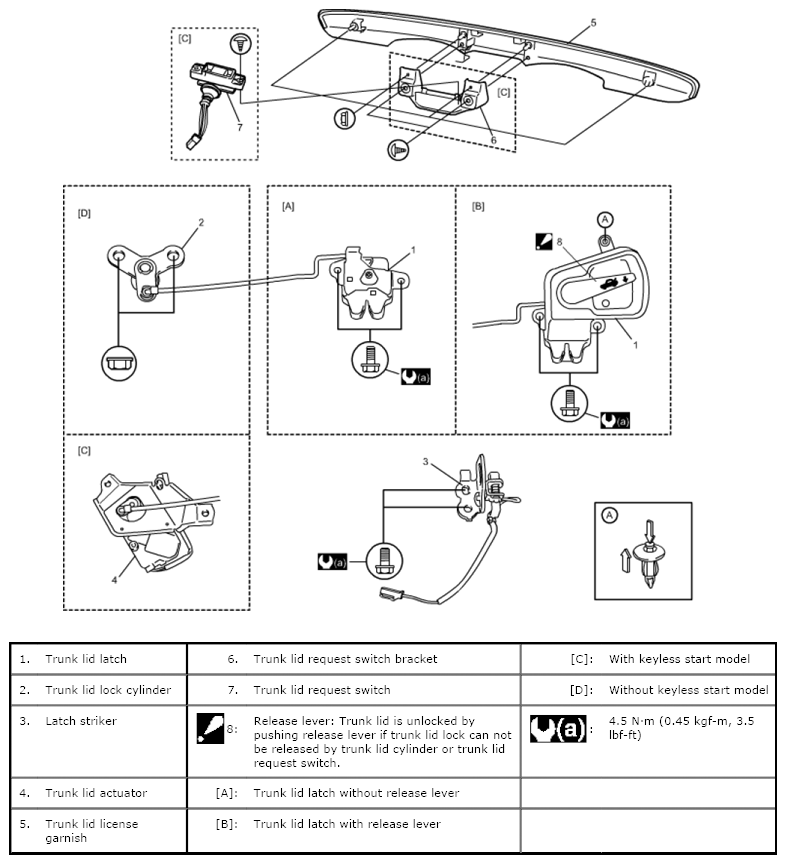

Fig 1: Trunk Lid Lock Assembly Replacement Components (Sedan) With Torque Specifications
G06868909Courtesy of SUZUKI OF AMERICA CORP.
