No DTC Detection after Performing DTC Check: Wiring Diagram

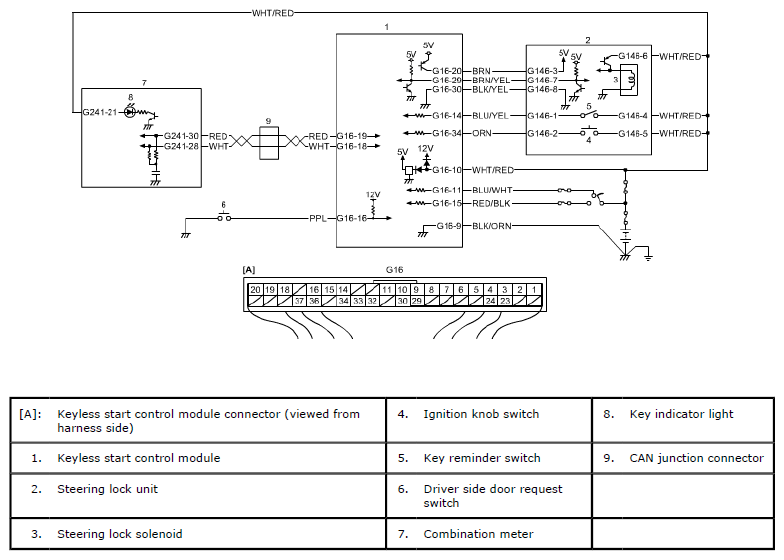

Fig 1: Keyless Start Control Module Wiring Diagram
G06869303Courtesy of SUZUKI OF AMERICA CORP.
