Key Indicator Light Circuit Check (Key Indicator Light Does Not Light when Ignition Knob Switch Is Pushed): Wiring Diagram

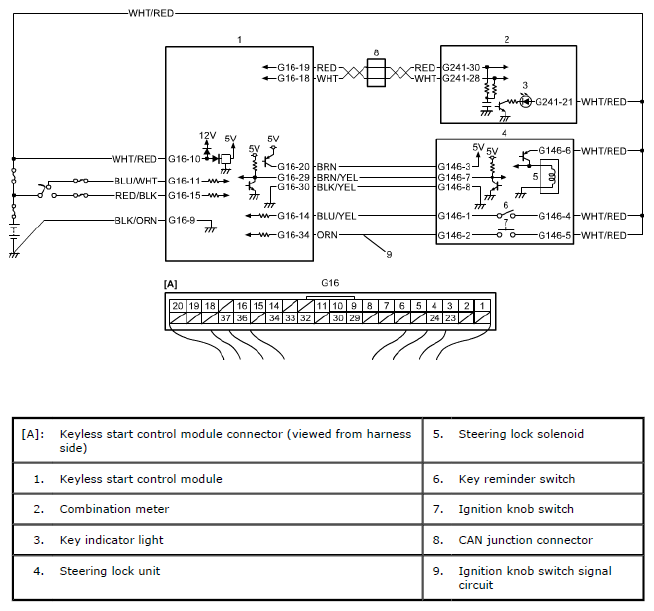

Fig 1: Key Indicator Light Wiring Diagram
G06869304Courtesy of SUZUKI OF AMERICA CORP.
