2WD/4WD Switch Inspection




2WD/4WD Switch Inspection

2WD/4WD Switch Removal and Installation

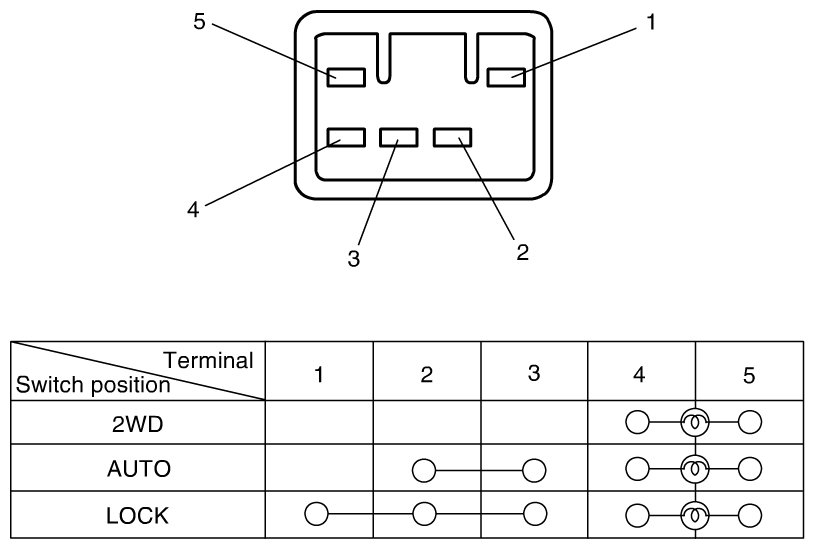

Check 2WD/4WD switch for continuity between terminals at each switch position.

If check result is not as specified, replace switch.
