Coupling Air Temperature Sensor Removal and Installation




Coupling Air Temperature Sensor Removal and Installation

Removal

1) Dismount rear differential referring to Removal and Replacement Rear Differential Dismounting and Remounting.

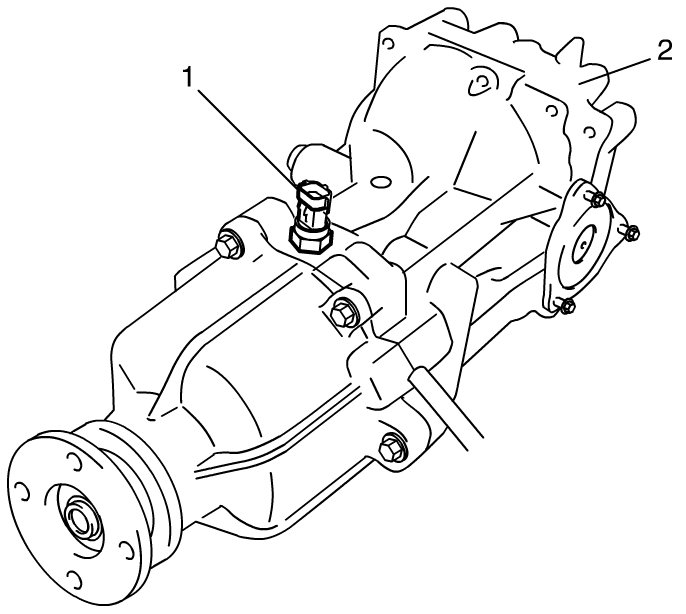

2) Remove coupling air temperature sensor (1) from rear differential (2).






Installation

Coupling Air Temperature Sensor Inspection

Reverse removal procedure for installation, noting the following point.

- Tighten coupling air temperature sensor to specified torque.

Tightening torque
Coupling air temperature sensor 18 Nm (1.8 kgf-m, 13.0 lbf-ft)
