Rear Mounting Bracket Assembly Disassembly and Reassembly

Rear Differential Mounting Components

Front Mounting Arm and/or Rear Mounting Bracket Assembly Removal and Installation

Disassembly

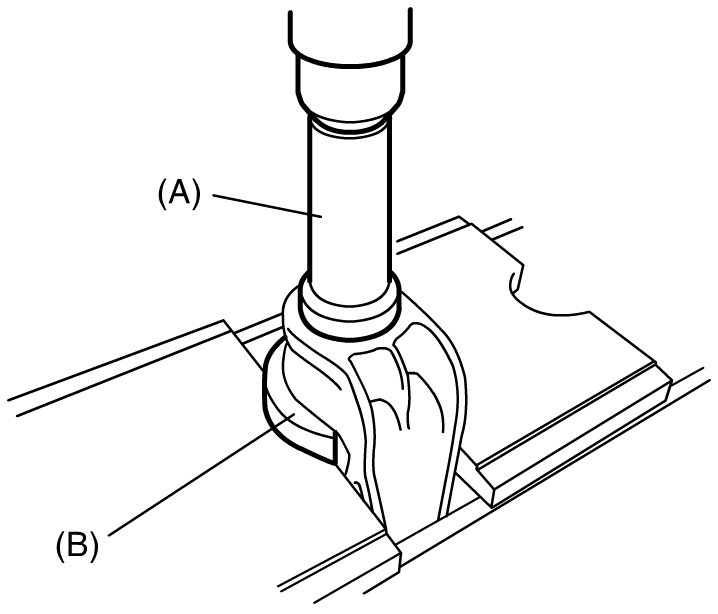

Drive out mountings from rear mounting bracket using special tools and hydraulic press.
Special Tool

(A): 09913-70123

(B): 09951-26020





Reassembly

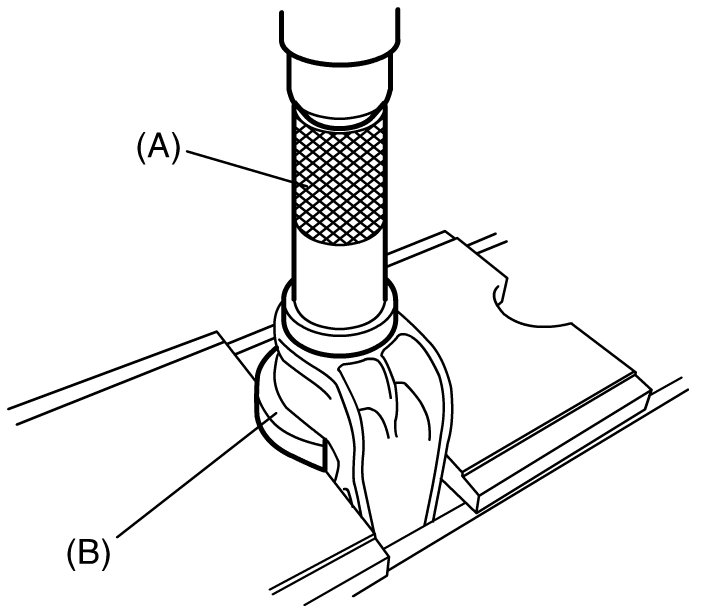

Press mountings in rear mounting bracket using special tools and hydraulic press with caring its installation position shown in figure.
Special Tool

(A): 09913-85210

(B): 09951-26020
